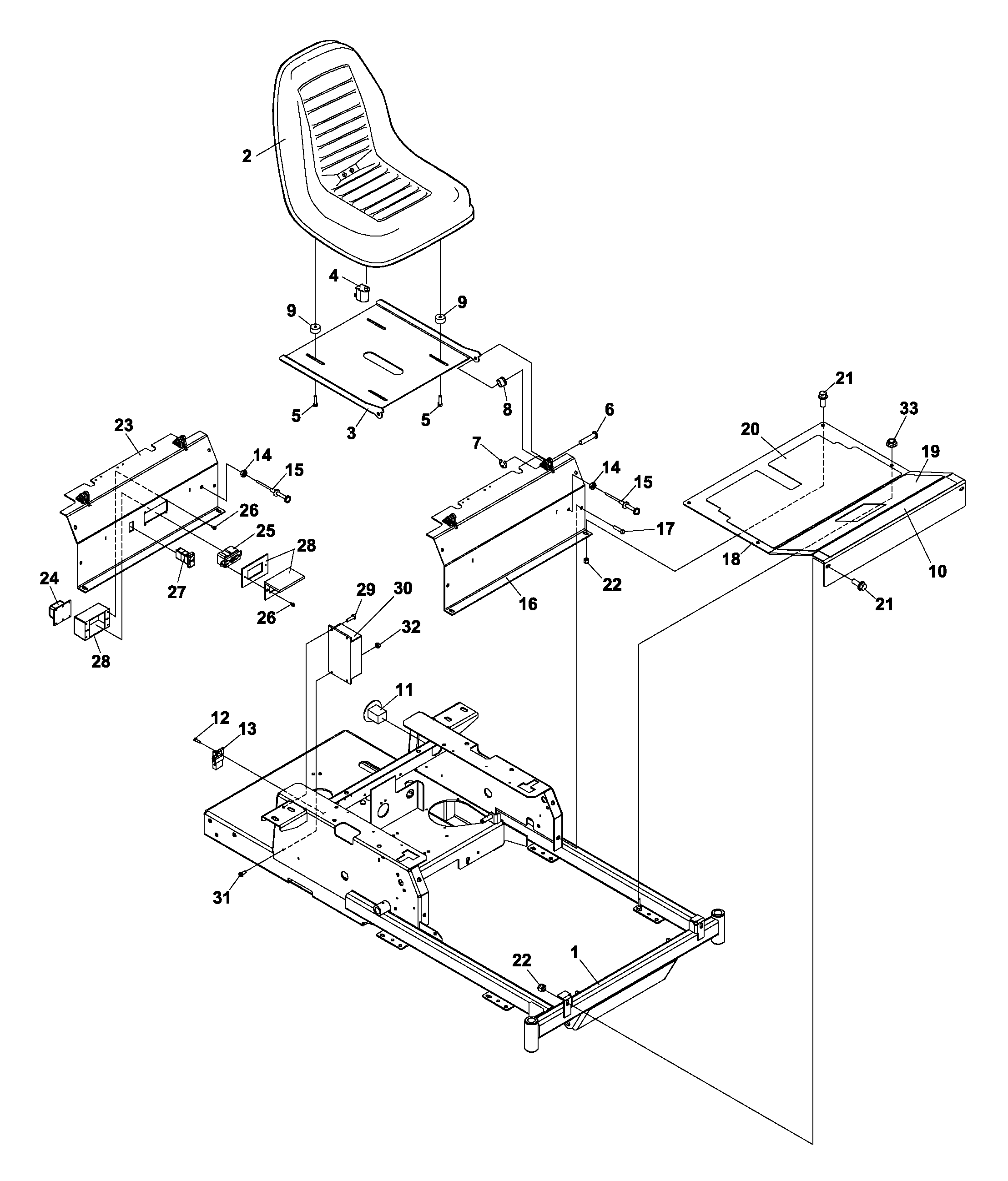

Kickplate/Seat Assembly

Picture of S-FRAME W/ LABELS STEINER

S-FRAME W/ LABELS STEINER

4132442
$0.00 excluding shipping
Picture of SEAT-LEO

SEAT-LEO

4126406
$133.53 excluding shipping
Picture of PLATE-SEAT

PLATE-SEAT

4133517.7
$0.00 excluding shipping
Picture of SWITCH-SEAT NO

SWITCH-SEAT NO

4124009
$10.51 excluding shipping
Picture of BLT-WLF 5/16-18X1-1/4

BLT-WLF 5/16-18X1-1/4

64139-10
$0.86 excluding shipping
Picture of PIN CLEVIS GRVD .38 X 1.31

PIN CLEVIS GRVD .38 X 1.31

33138-09
$5.38 excluding shipping
Picture of RING-RET .375 EXT KLIP

RING-RET .375 EXT KLIP

64144-30
$0.86 excluding shipping
Picture of BRG-NYLINER 3/8

BRG-NYLINER 3/8

38371-01
$1.31 excluding shipping
Picture of SPACER-NYLON 3/8IN

SPACER-NYLON 3/8IN

2720975-07
$1.38 excluding shipping
Picture of MAT-FOOT PLATE UPPER

MAT-FOOT PLATE UPPER

2721861
$4.81 excluding shipping
Picture of HOUR METER ASSEMBLY

HOUR METER ASSEMBLY

48030N
$54.74 excluding shipping
Picture of BLT-TDFM 10-32X1/2 TORX HD

BLT-TDFM 10-32X1/2 TORX HD

64197-015
$0.97 excluding shipping
Picture of MODULE-DELAY

MODULE-DELAY

2188154
$29.62 excluding shipping
Picture of NUT-HEX 3/8-24

NUT-HEX 3/8-24

64025-04
$0.84 excluding shipping
Picture of CONTROL-CHOKE 59

CONTROL-CHOKE 59

108009-07
(ITEMS 14 & 15 NOT USED ON 17.5 HP UNITS)
$0.00 excluding shipping
Picture of S-FRONT PLATE

S-FRONT PLATE

4132492
(USED ON 17.5, 18 & 20 HP UNITS)
$0.00 excluding shipping
Picture of BLT-FLG HD 3/8-16 X 3/4

BLT-FLG HD 3/8-16 X 3/4

64262-010
4178519-03.TIF
$0.84 excluding shipping
Picture of S-FOOTPLATE

S-FOOTPLATE

4132446
$0.00 excluding shipping
Picture of MAT-FOOT PLATE MIDDLE

MAT-FOOT PLATE MIDDLE

4129955
$15.63 excluding shipping
Picture of MAT-FOOT PLATE LOWER

MAT-FOOT PLATE LOWER

2721859
$22.98 excluding shipping
Picture of BLT-FLG HD 3/8-16 X 1

BLT-FLG HD 3/8-16 X 1

64262-011
$0.84 excluding shipping
Picture of NUT-NYLON LOCK 3/8-16

NUT-NYLON LOCK 3/8-16

64229-03
4168935-01.TIF
$1.07 excluding shipping
Picture of S-FRONT PLATE

S-FRONT PLATE

4132493
(USED ON 25 HP UNITS)
$0.00 excluding shipping
Picture of COIL

COIL

4127677-01
(ITEMS 19-24 USED ON 25HP MODEL ONLY)
$0.00 excluding shipping
Picture of GFCI RECEPTACLE

GFCI RECEPTACLE

4127677-02
(ITEMS 19-24 USED ON 25HP MODEL ONLY)
$0.00 excluding shipping
