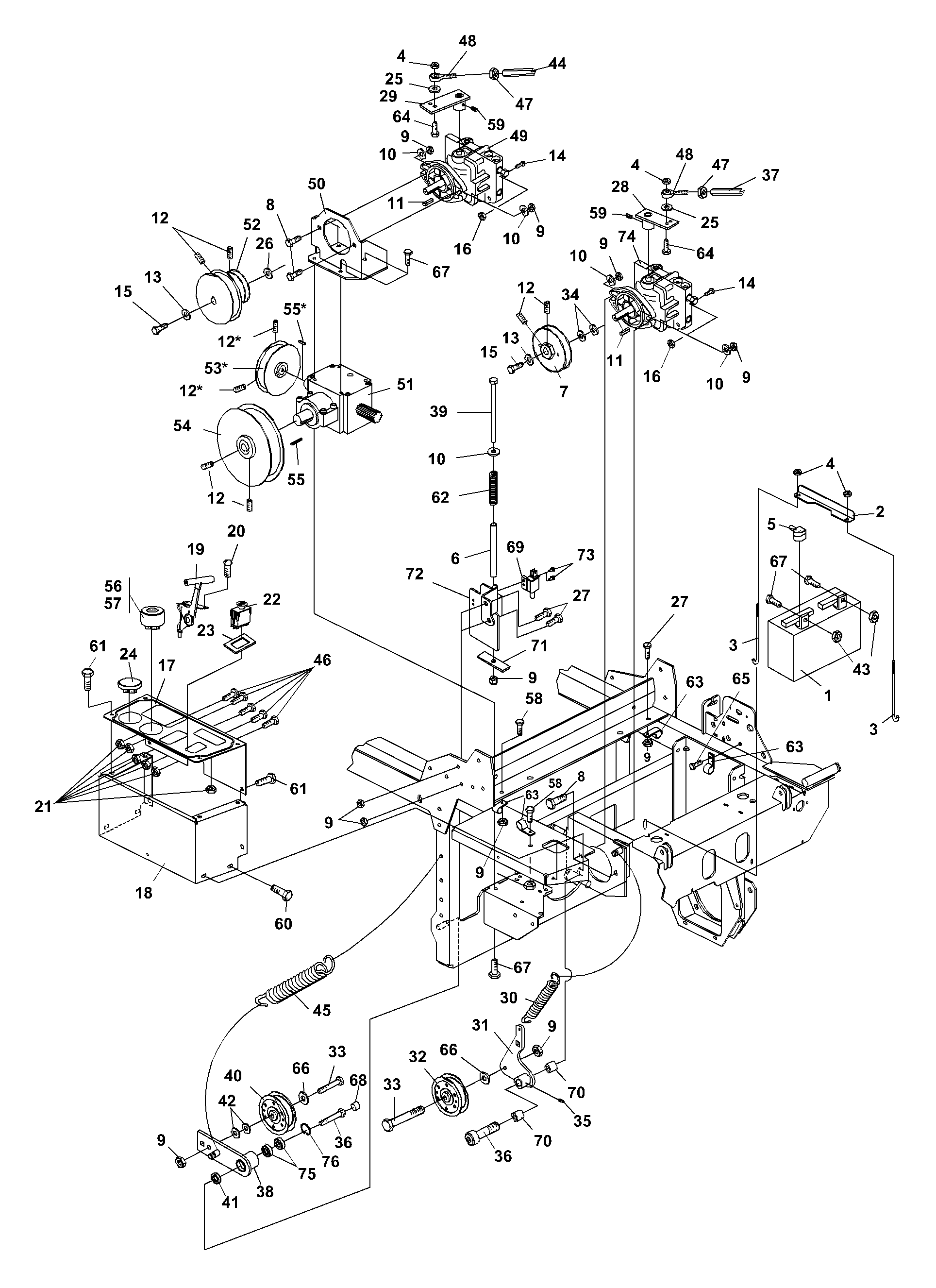

Pumps & Control Panel

Picture of SCRW .31-18 1.25 BS HS G8 (KC)

SCRW .31-18 1.25 BS HS G8 (KC)

800513
NOT ILLUSTRATED; (SERVICE PARTS FOR GEAR BOX)
$0.83 excluding shipping
Picture of SEAL-GEARBOX

SEAL-GEARBOX

2228008-01
(SERVICE PARTS FOR GEAR BOX)
$13.87 excluding shipping
Picture of BATTERY-U1 250 CCA

BATTERY-U1 250 CCA

108055
$0.00 excluding shipping
Picture of BRACKET-BATTERY HOLD-DOWN

BRACKET-BATTERY HOLD-DOWN

2222125.7
$0.00 excluding shipping
Picture of BOLT-BATTERY HOOK

BOLT-BATTERY HOOK

2228048
$0.00 excluding shipping
Picture of NUT-NYLON LOCK 5/16-18

NUT-NYLON LOCK 5/16-18

64229-02
4168935-01.TIF
$0.84 excluding shipping
Picture of BOOT BAT TERM POS

BOOT BAT TERM POS

112386
$2.26 excluding shipping
Picture of SPACER-9.92X12.7X130.4 LG

SPACER-9.92X12.7X130.4 LG

2720966
$0.00 excluding shipping
Picture of PULLEY-PUMP

PULLEY-PUMP

2228017
$82.29 excluding shipping
Picture of BLT-HEX 3/8-16X1-1/4

BLT-HEX 3/8-16X1-1/4

64123-16
4168935-01.TIF
$0.87 excluding shipping
Picture of NUT-NYLON LOCK 3/8-16

NUT-NYLON LOCK 3/8-16

64229-03
4168935-01.TIF
$1.07 excluding shipping
Picture of WSHR 25/64X1X12

WSHR 25/64X1X12

64163-31
4168935-01.TIF
$1.10 excluding shipping
Picture of KEY 5MM SQ X 20MM LONG

KEY 5MM SQ X 20MM LONG

64238-01
$0.00 excluding shipping
Picture of SCREW-SET 5/16-18 X 5/16

SCREW-SET 5/16-18 X 5/16

64044-18
Context Note: NOT ILLUSTRATED
$0.84 excluding shipping
Picture of WSHR-CON SPRING

WSHR-CON SPRING

64209-09
$1.59 excluding shipping
Picture of BLT-HEX 1/4-20X2

BLT-HEX 1/4-20X2

64123-60
4173033-01.tif
$0.89 excluding shipping
Picture of BLT-METRIC M6-1X12

BLT-METRIC M6-1X12

64205-013
$0.96 excluding shipping
Picture of NUT-NYLON LOCK 1/4-20

NUT-NYLON LOCK 1/4-20

64229-01
$1.06 excluding shipping
Picture of S-CONTROL PANEL

S-CONTROL PANEL

4136749
$0.00 excluding shipping
Picture of WRAPPER-CONTROL PANEL

WRAPPER-CONTROL PANEL

2222121.17
$0.00 excluding shipping
Picture of CONTROL-THROTTLE 26.50

CONTROL-THROTTLE 26.50

118020-12
$30.32 excluding shipping
Picture of SCREW-SLT HH 10-24X1/2

SCREW-SLT HH 10-24X1/2

64152-46
$0.90 excluding shipping
Picture of NUT-HEX #10-24 KEPS

NUT-HEX #10-24 KEPS

64025-15
4170938-08.TIF
$0.84 excluding shipping
Picture of SWITCH-PTO

SWITCH-PTO

2721505
$26.44 excluding shipping
Picture of SWITCH-RETAINER

SWITCH-RETAINER

2188178
$0.85 excluding shipping
